Working Principle of DC Generator

A dc generator is an electrical machine that converts mechanical energy into electrical energy throughout the current flows in one direction of the output terminal.

To realize the working of a dc generator, consider the following figure.

Working principle of dc generator
Figure 1: Principle of dc generator (Showing with a single turn conductor coil)

Figure 1 shows a single turn copper conductor circulating in the magnetic field. When the Cu conductor coil side AB is at position 1, the maximum flux linked with the coil (According to Faraday’s law of electromagnetic induction). Hence there is no induced emf as the rate of change of flux is minimum. Now successively forwarding with clockwise direction towards at position 2, the minimum flux successively linked with the Cu coil, then maximum emf is produced as the rate of change of flux is maximum.

By forwarding at position 3, the flux cut tends to a minimum by the coil. As a result, the emf production tends to zero.

principle of dc generator

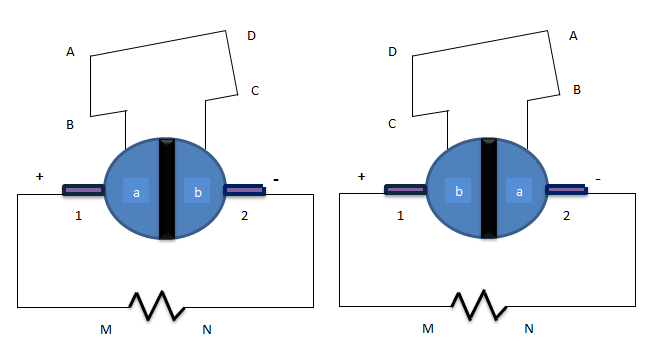

Figure 2: Change of coil side, replacing AB by DC: Not showing the magnetic field

When the coil side (AB) is at position 4 (Exact position of figure 1), the minimum flux linked, and the maximum rate of change of flux. But in this time the emf becomes negatively maximum by the direction. Now the coil completes the full cycle and repeats the same way.

AC to DC conversion

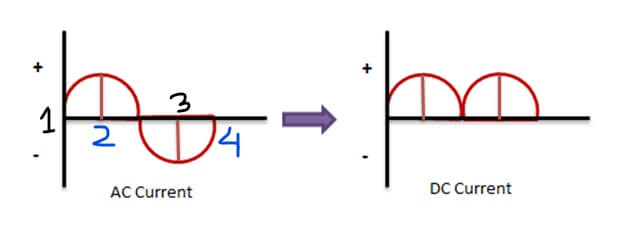

Figure 3: Conversion of AC to DC waveform

This alternating current is made unidirectional (figure 3) by using split rings (made of segments, brushes, and mica). The split rings are so arranged that after half cycle (180 degrees) of revolution it keeps constant its positive and negative segments. The brushes are to use collecting the dc current.

Analyze Yourself

Q1. Define Generator.
Q2. What is a DC Generator? Explain the working of it.
Analyze yourself

Hello Readers, if you are in complexity to understand the principle of dc generator, please comment below.

The above figure is related to the working principle of dc generator.
